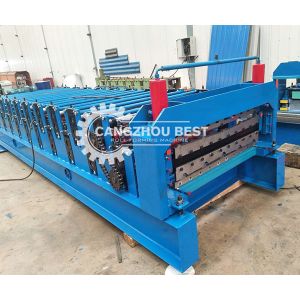

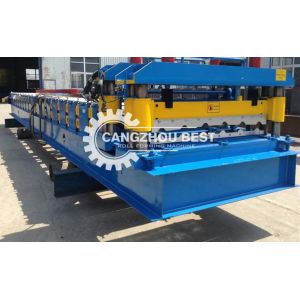

    IBR Roof Making Machine / Roofing Sheet Roll Forming Machine Stable Performance

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-850
    Certification : CE.ISO
    Price : USD+6500+SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    IBR Roof Making Machine / Roofing Sheet Roll Forming Machine Stable Performance

    Africa High Quality IBR Roof Making Machine Sheet Roll Forming Machine


    Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
    The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.


    No.
    Name
    Qty
    1.
    De-coiler
    1 Set
    2.
    Roll Forming Machine
    1 Set
    3.
    Hydraulic Cutting Device
    1 Set
    4.
    PLC Control Box
    1 Set
    5.
    Output table
    1 Set

    Decoiler

    Max. Width: 1250 mm
    Inner Diameter: Φ450 – Φ550 mm
    Out Diameter: 1500 mm
    Max. Loading Capacity: 5000 kgs

    Type: Manual Or Hydraulic (Optional)


    Roll Forming Machine

    Material Thickness: 0.7-1.5mm

    Rollers: 28groups

    Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

    Shaft Diameter: 90mm

    Frame panel thickness: 20mm

    Bottom frame: 35# H-section steel
    Motor Power: 2*11kw

    Driven type: 2.0"Chain


    o.Parameter
    1raw materialsuitable materialcolored steel coil, galvanized coil, aluminum coil
    feeding width1200mm
    effective width988mm
    thickness0.3-0.8mm
    PS: the feeding&effective width can be any according to your need.
    2rollersmaterial45#steel
    rows20 rows
    3shaftsmaterial45#steel, solid ones
    diameterΦ90mm and 120mm
    4cutting bladehydraulic cutting, Cr12 Mov
    5capacity15-20m/min, can be faster as your need.
    6weight13Tons
    7control systemPLC control system with inverter inside to assure the working precision within 1mm
    8dimension11500*1600*1550mm
    9machine base400mm H beam
    10middle plate20mm
    11chainsdouble1.2 inch
    PS: the above are for reference, we can design accordin

    Working Flow

    Decoiler------feeding -------roll forming------cut to length-----output table


    Packing Detall


    Packaging
    Size
    123 (L) * 456 (W) * 789 (D)
    Weight
    1.2 T
    Packaging Details
    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


    Company Profile

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


    After-Sales-Service

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    Without visiting, we will send you user manual and video to teach you to install and operate.


    Other Product

    Main Features

    1.We can make and design all kinds of roll forming machine according to customer's requests.
    2.This is a very perfect and durable equipment. We have more than 20 years experiences.
    3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
    4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
    5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
