    PPGI 22kw Omega Light Steel Keel Roll Forming Machine

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-130
    Certification : CE/ISO
    Price : USD+7500+SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    PPGI 22kw Omega Light Steel Keel Roll Forming Machine

    High Speed 22kw Omega Light Steel Keel Ceiling Metal Roll Forming Machine​


    Our Machine Advantage

    1.Good quality: We have a professional designer and experienced engineer team.And

    the raw material and accessories we use are good.

    2.Good service: we provide the technical support for whole life of our machines.

    3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

    4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

    5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

    6.Reasonable price:We offer the best price in our industry.


    Machine Component

    Decoiler1set
    Roll Forming Machine1set
    Cutting Device1set
    Multi Revsiting1set
    PLC Control Box1set
    Hydraulic Pump1set
    Output Table1set

    Decoiler

    Max. Width:300 mm
    Inner Diameter: Φ450 – Φ550 mm
    Out Diameter: 1000 mm
    Max. Loading Capacity: 3000 kgs

    Type: Manual Or Hydraulic (Optional)

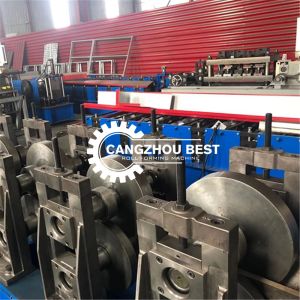

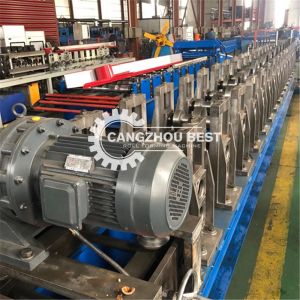

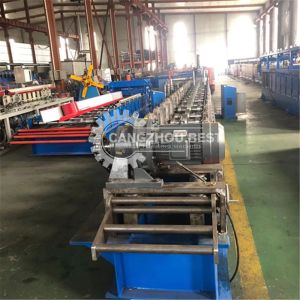

    Roll Forming Machine

    Material Thickness: 0.6-1.2mm PPGI and GI

    Roller Stations: 14 groups
    Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    Diameter of shaft: 65mm

    Bottom frame: 36# H-section steel
    Motor Power: 3kw

    Driven type: 1.0"Chain

    Diameter of shaft: 65mm

    Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°


    Working conditions
    1.Machine size10m x 1.2m (L XW)
    2.Working size20m x 2.5m (LXW)
    3.Power supply8.5kw
    4.Frequency50-60HZ
    5.Wires/cables4-6mm²(length according to workshop)
    6. Labor cost2 workers
    7. ToolsSpanners and screwdriver
    8.Lift device3-5t forklift or crane

    Cutting Device

    Type

    Hydraulic, Automatic Cut-Off

    Power3kw
    Cutting Blade Material

    Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°


    Multi Revsiting Device

    Rollers: 1 group

    Material for roller: 45# steel polished and coated with chrome HRC55-60°

    Functon:it uses for revising the finished product to make the product straight.


    Control System

    Type: PLC Frequency Control System with touch screen
    PLC Brand: Delta
    Encoder Brand: Omron

    Length Error: ±2mm

    Language: English and Chinese


    Hydraulic Pump

    Main ItemParameter detail
    Motor3kw China brand or according to your request
    PumpChina brand or according to your request
    Solenoid valveChina brand or according to your request
    Cooling systemCooling fan

    Packing Detall

    1.

    40 GP container ; main machine naked and fastened with iron wire in the container.

    2.

    Rollers were painted with oil and packed with plastic film.

    3.

    Electrics devices be packed with wooden box.for Standard export packing.

    4.

    All Components Fixed by steel wire with Container.
