    1000mm Double Layer Forming Machine Roofing Sheet R Panel

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-828/840
    Certification : CE,BV,SGS
    Price : USD8500-25500/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    1000mm Double Layer Forming Machine Roofing Sheet R Panel

    IBR Metal Glazed Roof Tile Roll Making Forming Machine With High Quality


    1. Description

    Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets. usually, one layer forming machine or single layer forming machine only make one roofing design. Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.


    2. Parameters:


    Article No.
    Item Name
    Specification
    1
    Width of feeding material
    1000/1220/1250 mm coil sheet
    2
    Thickness of feeding material
    0.3-0.6mm
    3
    Roller station
    16stations
    4
    Shaft Diameter
    70mm
    5
    Productivity
    8-15m/min
    6
    Rollers' material
    45# with 0.05mm chrome
    7
    Shaft material
    45# with 0.05mm chrome
    8
    Weight
    7.5tons
    9
    Size
    7.5*1.5*1.5m
    10
    Voltage
    380v 60hz 3Phase or as customer request
    11
    Control
    Delta brand PLC
    12
    Decoiler
    5tons Manual Coiler
    13
    Motor
    5.5kw
    14
    Driving way
    Chain
    15
    Chain size
    1inch
    16
    Cutting system
    Hydraulic cutter

    3. Technology Index


    The main description

    Feeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
    Machine body: 350H steel welded
    Machine frame: Iron cast molding frame
    Roller material: 45# steel with quenched treatment and hard chroming
    Shaft diameter: 70mm,solid
    Shaft material: 45# steel with tempering treatment
    Motor power: 3kw
    Speed: 0-20m/min
    Transmission: By chain
    Voltage: 380V,50HZ,3PH

    Un-coiler:

    UnCoiler : 5 ton manual

    Decoiling Holder: 2200mm×1620mm×1700mm

    inside diameter of the uncoiler: 510-610mm


    Press parts

    Type Hydraulic

    Hydraulic Station Power: 5.5kw

    Size of the press parts: 2000*1800*1500mm


    Cutting parts

    Blade material: Cr12,with quenched treatment

    Motor power: 4 kw Cutting tolerance: +/-1 mm

    Cooling system: With fan cooling

    Cutting type: Hydraulic cutting

    Feature: Low noise and high performance


    Control system

    Control system: PLC
    PLC brand: Delta from Taiwan
    Frequency converter brand: Delta from Taiwan
    Encoder: Omron
    Function: Automatic control the length,quantity and batch

    Passive Out table

    Size of the out table: 2000*1350*1000mm, two pieces


    4. Our service:

    Terms of payment30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
    Delivery30 days after receipt of advance payment.
    Service

    we sent technician to your country to fix the machine.

    The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

    Warranty

    18 months limited warranty

    During warranty: parts are free but buyer pay the shipping fee.


    5. Summary

    1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

    2). Choose the best material and components, and adopting our 25+ years experience;

    3). We achieves that the machine capacity is double of the competitors;

    4). The machine working speed can be 60m/min;

    5). Very easy to install and operate the roll forming machine.

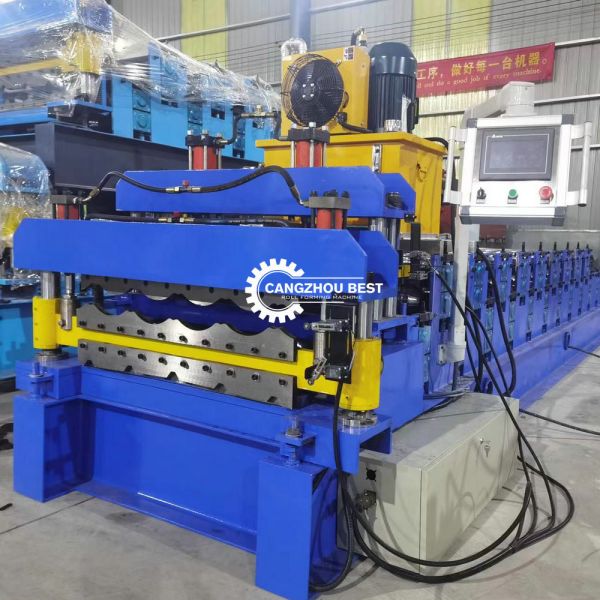

    6. Machine photos:


    Quality 1000mm Double Layer Forming Machine Roofing Sheet R Panel for sale
